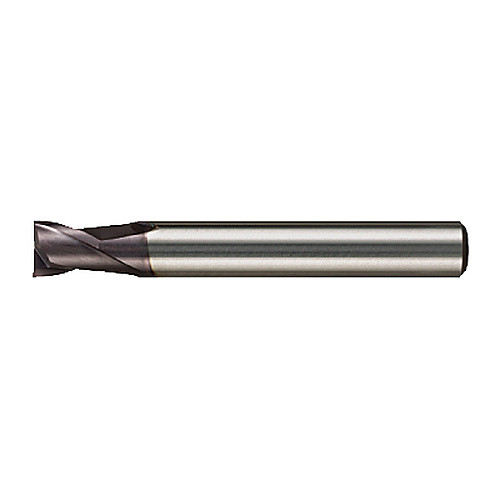

MS2ESD0500L35S05 CARBIDE
SQ End Mill; 5 mm Dia. × 5 mm LOC × 5 mm Shank Dia. × 35 mm OAL ; 2 FL ; TiAlN ; Series MS2ES
| Cutting Diameter (DC) | 5 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 5 mm | Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Overall Length (OAL) | 35 mm | Length Group | Extra Short |
| Coating | TiAlN | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | MS2ES |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
