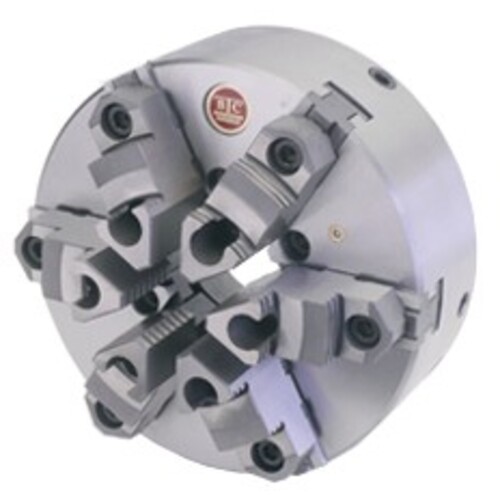

10″ Zero Set, 6 Jaw, Scroll Chuck, Top Reversible Jaw, Flatback
| Type | Scroll | Material | Semi Steel Body |
| Number of Jaws | 6 | Weight | 70 lbs |
| Chuck Size | 10″ | Model No | 1106R |
| Mount | Plain Back | Maximum RPM | 1,900 |
| Operation Type | 2.835″ | Body Width | 3.492″ |
| Chuck Style | Zero Set Scroll Chuck | Size of Mounting Bolts | 7/16″-14 |
Product Features
| Remarks | •.0005″ repeatability on duplicate parts. This accuracy is possible by having a clearance of .020″ between the chuck cavity and the mounting plate hub. Opposing adjusting screws allows alignment to adjust work to "dead true" accuracy and repeatability on duplicate parts. With proper care BTC Chucks useful life is approximately 2.5 times longer than standard self centering scroll chucks. •Chuck- Scroll Hardened & Ground •Master Jaws and Top Jaws •T-Wrench •Mounting Screws | Country of Origin | USA |
Shipping Info
Hazard Code
W
Shipping Notes
Weighted Item. Additional Costs Apply.
Package Weight
70.000
