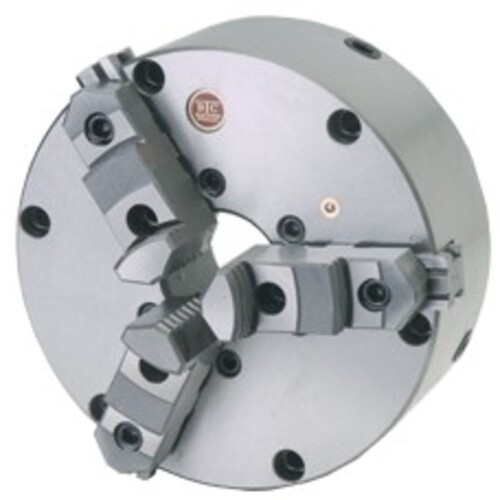

4″ 3-Jaw Scroll Chuck, Zero Set, Solid Jaw
| Type | Scroll | Material | Semi Steel Body |
| Number of Jaws | 3 | Weight | 10 lbs |
| Chuck Size | 4″ | Model No | 1043 |
| Mount | Plain Back | Maximum RPM | 4,000 |
| Operation Type | 1.024″ | Body Width | 2.323″ |
| Chuck Style | Zero Set Scroll Chuck | Size of Mounting Bolts | 3/16″-24 |
Product Features
| Remarks | •.0005″ repeatability on duplicate parts. This accuracy is possible by having a clearance of .020″ between the chuck cavity and the mounting plate hub. Opposing adjusting screws allows alignment to adjust work to "dead true" accuracy and repeatability on duplicate parts. With proper care BTC Chucks useful life is approximately 2.5 times longer than standard self centering scroll chucks. •Chuck Scroll Hardened & Ground •Solid Jaw •T-Wrench •Mounting Screws | Country of Origin | USA |
Shipping Info
Package Length
1.00000
Package Width
1.00000
Package Height
1.00000
Package Weight
10
