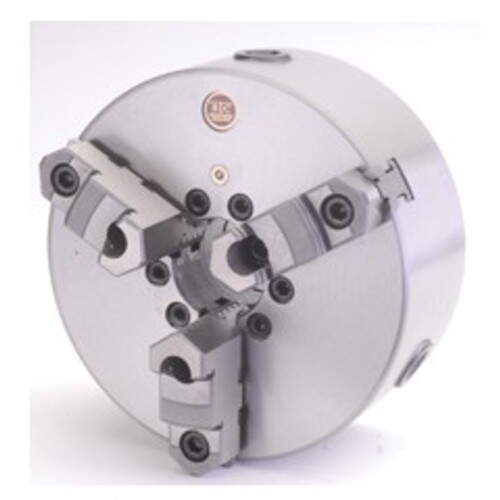

20″ 3-Jaw Self Centering Scroll Chuck, D1-15
| Type | Self-Centering | Material | Semi Steel Body |
| Number of Jaws | 3 | Weight | 320 lbs |
| Chuck Size | 20″ | Model No | 6203D15 |
| Mount | D1-15 | Body Width | 5.315″ |
| Operation Type | 8.268″ | Size of Mounting Bolts | M24 × 1.50 mm |
| Chuck Style | Direct Mount Type "D" Independent Chuck |
Product Features
| Remarks | •Type "A" Mount - Top Reversible Jaws •"A1″ will not fit A2 spindle - "A2″ will fit A1 or A2 •Am. standard 2-pc tongue and groove jaw •Scroll and jaws hardened and ground •Semi-steel body | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
320
