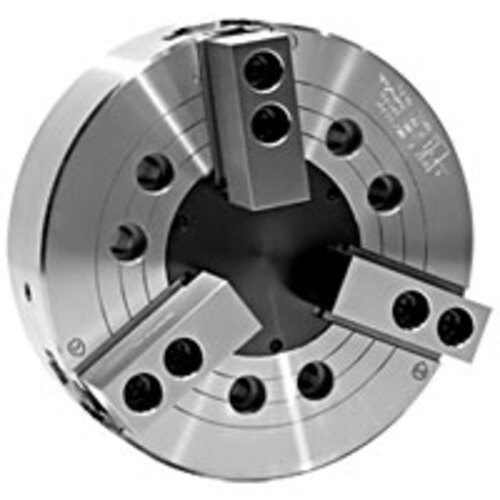

3-Jaw Closed Center Power Chuck, Direct Mount A2-5, 6″
| Type | Closed Center | Maximum RPM | 6,000 |
| Number of Jaws | 3 | Chuck Height | 3.300″ |
| Chuck Size | 6″ | Minimum Gripping Diameter | 0.748″ |
| Mount | A2-5 | Maximum Gripping Diameter | 6.490″ |
| Chuck Style | Power | Jaw Stroke | 0.362″ |
| Weight | 46.738 lbs | Plunger Stroke | 0.787″ |
| Model No | 37610605 | Max. Gripping Force | 14,167 lbs |
Product Features
| Remarks | •Supplied with spindle mounting plate, set of soft top jaws, set of t-nuts, wrenches for chuck installation and operation. •Low cost direct replacement for major OE brands •High performance and great value •Use existing top jaws 1.5mm × 60° serrations •Hardened and ground critical surfaces for long life and high accuracy •1 Year Warranty | Country of Origin | S.Korea |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
38
