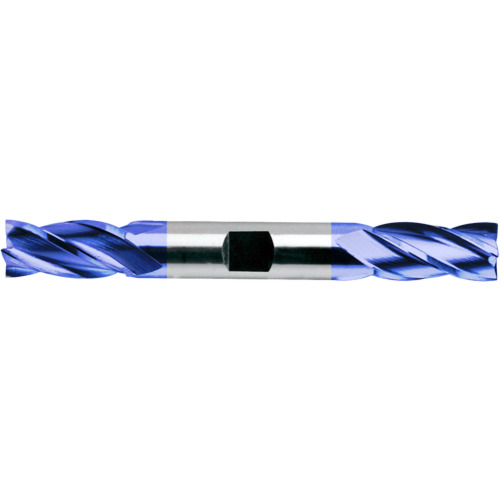

Square End Mill; 7/32″ Dia. × 9/16″ LOC × 3/8″ Shank Dia. × 3-3/8″ OAL ; 4 FL ; Carbide ; TiCN ; Series E5024
SQ End Mill; 7/32″ Dia. × 9/16″ LOC × 3/8″ Shank Dia. × 3-3/8″ OAL ; 4 FL ; Carbide ; TiCN ; Series E5024
| Cutting Diameter (DC) | 7/32″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Tool Type | 4 Flute Regular Length Double |
| Depth of Cut Maximum (APMX) | 9/16″ | Length Group | Regular |
| Overall Length (OAL) | 3-3/8″ | Decimal Equivalent | 0.2188″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN | Series/List # | E5024 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Double End |
| Shank Type | Weldon | Center Cutting | Yes |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.75
Package Width
0.75
Package Height
0.75
Package Weight
0.146
