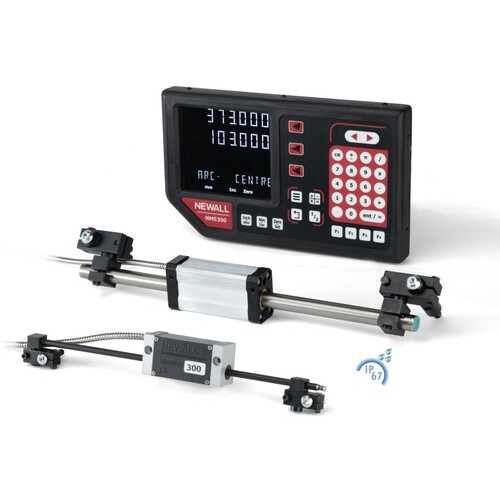

14 × 200″ Spherosyn Serial Configuration on Cross Slide Encoder Lathe Package
| Type | Digital Readout System | Y-Axis Stage Travel | 200″ |
| X-Axis Stage Travel | 14″ | Machine Compatibility | Turning Applications |
Product Features
| Remarks | •NMS800 DRO Display - 2 Axis•Encoder Assemblies•Microsyn® Serial 10µm on Cross Sld with 10″ of travel and under•Spherosyn® Serial on Cross Sld with 12″ of travel and over•Spherosyn® Serial on Carriage Travels•Lathe Bracket Kit•Headstock Display Mount or Carriage Mount•Standard cable length is 11.5'. Extended cable lengths are available in lengths of 22' and 32'. Contact factory•Lathe Packages with scale travels of 72″, 80″, 100″ and 120″ include 22' cable at no charge•Lathe Packages with scale travels of 160″, 200″ and 240″ include the Carriage Display Mount and 3.5M Cables. Extension cables must be ordered seperately if required•Cross Slide encoder is available in Microsyn® Serial 10µm or Spherosyn® Serial configuration at no extra charge•Cross Slide encoder can be substituted with Microsyn® Serial 5µm encoder. Add $62.00 to the package price•NMS800 Features•Datum preset/reset•Inch/mm• Abs/Inc•Ref location•½ function•Linear and segmented error comp per axis•Radius/diameter axis setting•RPM display for rotary encoder input•Standard calculator functions•Tool change (new operation); Sets the current tool type, offsets, diameter, etc•Display message (new operation);Will display a text message to the screen (mainly for use in Jobs)•Bolt hole/PCD;Selectable start and end angle (for full or partial circles)• Line/Grid; Selectable angle; Selectable number of holes X direction (line); Optional number of holes Y direction (grid)•Arc contour/Incline; Selectable plane (X-Y, Y-Z, X-Z); X-Y plane would be like current Arc contour; Y-Z and X-Z would cover incline (arc going up instead of flat)•Taper calculator•Slot; Selectable start point, orientation (X or Y axis) and length; Slot width determined by current tool diameter•Pocket/Island; Selectable width, height and location; Pocket will compensate tool inside W and H; Island will compensate tool outside W and H•Lathe vectoring | Country of Origin | GB |
Shipping Info
Package Weight
181.0000
