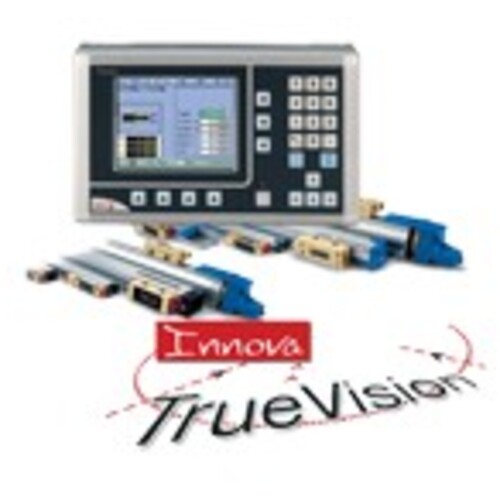

Milling Package - EXTREMEMC04; 18″ × 40″ × 6″, 3-Axis - Includes: 40i color readout, MKT–47 18″ Y-Axis scale, MKT–102 40″ X-Axis scale, MKT–17 6″ Z-Axis scale (Quill), Mill-M Combo bracket, Z Quill Kit
| Type | Milling Package | Machine Compatibility | Milling |
| Number of Axis | 3 | Scale Type | Quill |
| X-Axis Stage Travel | 18″ | Model No | EXTREMEMC04 |
| Y-Axis Stage Travel | 40″ | Includes | 40i color readout, Mill-M Combo bracket, Z Quill Kit |
| Z-Axis Stage Travel | 6″ |
Product Features
| Remarks | •Display - 5.7″ Color TFT screen •DRO for 2 & 3 axes with Color TFT screen •Linear and angular axes •Easy setup and diagnosis •Feedback signal monitoring •Linear and multi-point compensation •Radius or diameter display •Preset and zero setting of the axes •Incremental and distance-coded reference marks •Tool radius compensation •Fine/coarse axis resolution •Easy software update through USB adapter •3D color display of tool path •Bolt-hole drilling calculation •Up to 50 part references (datum points) •Linear drilling calculation •Part centering •Part alignment •Axis coupling | Country of Origin | ES |
Shipping Info
Package Weight
24
