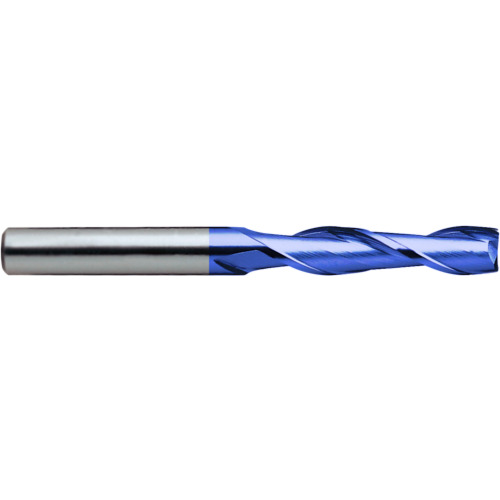

Square End Mill; 3/8″ Dia. × 1-3/4″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; TiCN ; Series E5026
SQ End Mill; 3/8″ Dia. × 1-3/4″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; TiCN ; Series E5026
| Cutting Diameter (DC) | 3/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 1-3/4″ | Tool Type | 2 Flute Extra Long Length |
| Overall Length (OAL) | 4″ | Length Group | Extra Long |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375″ |
| Coating | TiCN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | E5026 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
0.75
Package Height
0.75
Package Weight
0.205
