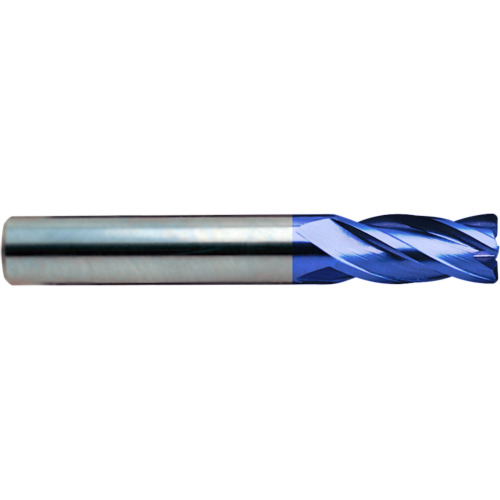

Square End Mill; 5/64″ Dia. × 3/16″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; TiCN ; Series E5021
SQ End Mill; 5/64″ Dia. × 3/16″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; TiCN ; Series E5021
| Cutting Diameter (DC) | 5/64″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 3/16″ | Tool Type | 4 Flute Regular Length |
| Overall Length (OAL) | 1-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0781″ |
| Coating | TiCN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | E5021 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.25
Package Width
0.625
Package Height
0.625
Package Weight
0.016
