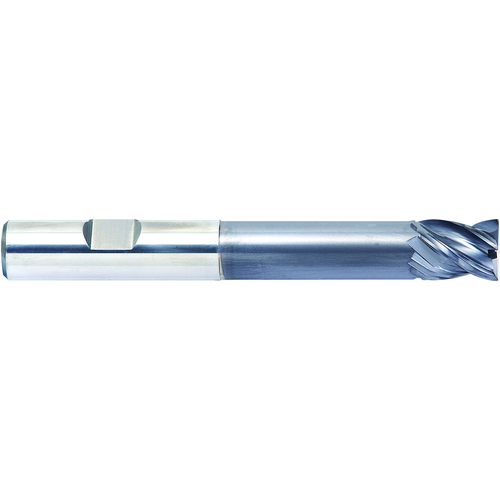

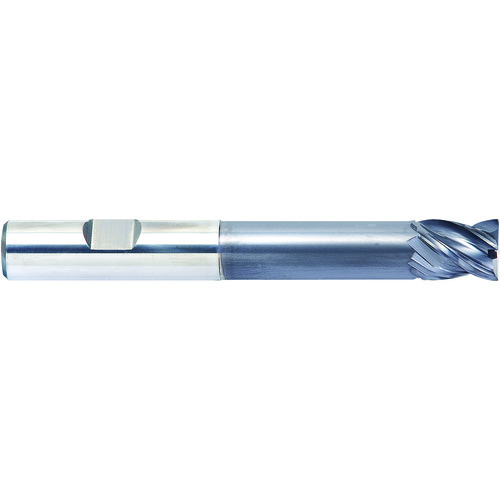

Square End Mill; 1″ Dia. × 1-1/8″ LOC × 1″ Shank Dia. × 6-1/2″ OAL ; 4 FL ; Carbide ; AlTiN ; Series EMB20
| Cutting Diameter (DC) | 1″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1″ | Usable Length (LU) | 4-1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 6-1/2″ | Length Group | Long |
| Cutting Edge Material | Carbide | Decimal Equivalent | 1″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | EMB20 |
| Flute Helix Angle (FHA) | Variable | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
7.625
Package Width
1.5
Package Height
1.5
Package Weight
2.4855
