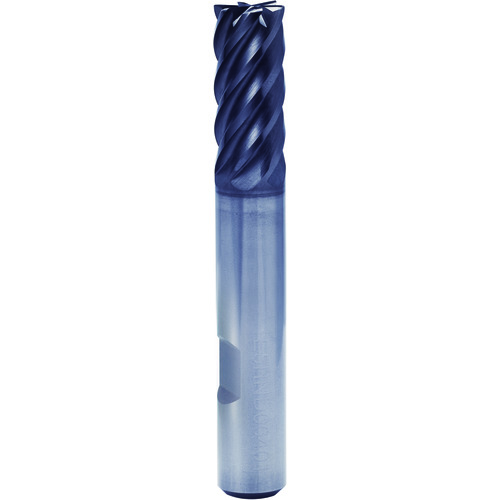

Square End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 6 FL ; Carbide ; Y-Coating ; Series GMG13
| Cutting Diameter (DC) | 10 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 22 mm | Tool Type | 6 Flute Standard Length |
| Overall Length (OAL) | 72 mm | Length Group | Long |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.3937″ |
| Coating | AlCrN | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Series/List # | GMG13 |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.18
