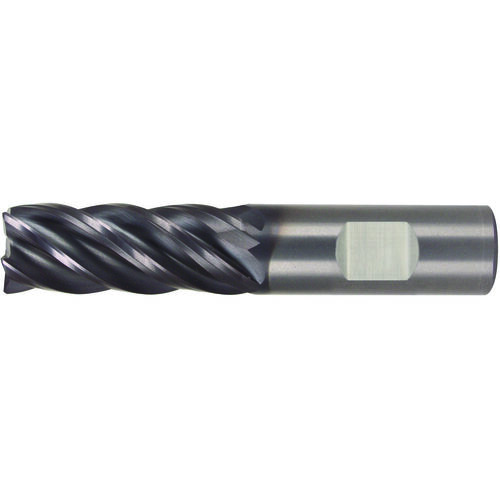

* 5/16X5/16X3/4X2 1/2 .03 CARB EM
| Cutting Diameter (DC) | 5/16″ | Flute Helix Angle (FHA) | CW|38 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 3/4″ | End Shape | Corner Radius |
| Overall Length (OAL) | 2-1/2″ | Usable Length (LU) | 3/4″ |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0.03″ |
| Coating | AlTiN | Style | 82-02 SEM Side and Center |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.3125″ |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
.0970
