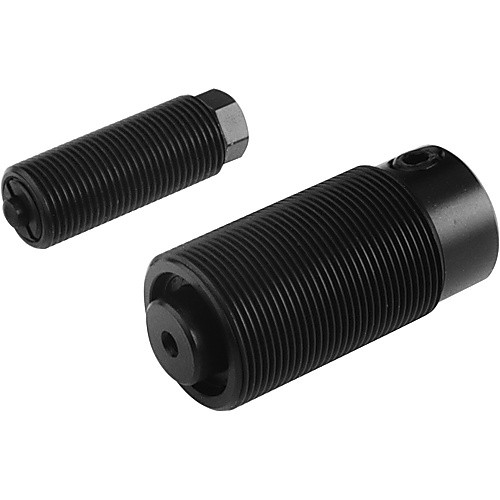

010–212–004 2IN BORE HYD THREADED
| Type | Hydraulic Power Cylinder | Across Flats | 2.00 Hex |
| Style | Threaded Body Cylinder | Outside Diameter | 2.5 |
| Bottom Outside Diameter | 2.00 Hex | Height | 4.13 |
| Clamp Width | 2.5 | Width (W) | 2.5 |
| Overall Height | 4.13 | Material | Steel |
| Overall Length (OAL) | 2.5 | Maximum Holding Force | 9423 lbs |
| Overall Width | 2.5 | Model No | 010-212-004 |
| Cap Diameter | 1.5 | Thread Diameter | 2 1/2-16 |
| Dimension F | 2 1/2-16 | Thread Size | 2 1/2-16 |
| Fits Spindle Diameter | 5/16-18 | Capacity of Full Block | 9423 lbs |
| Free Length | 2.5 | Height Adjustment Range | 1 |
| Top Outside Diameter | 2.5 | System of Measurement | inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
4
