1/2X1/2X1 1/4X2 1/4X4R.03 CARB EM

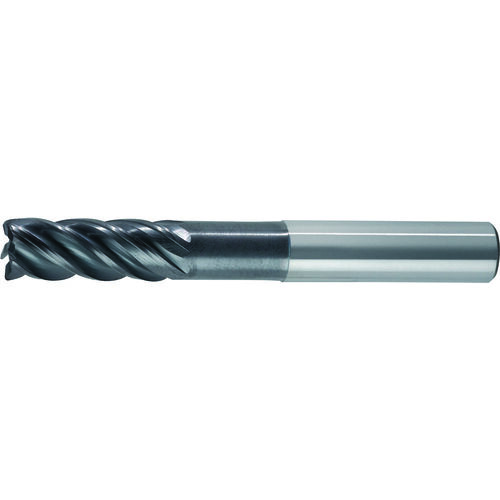

SQ End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 0.03″ RE ; 5 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Usable Length (LU) | 2-1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 4″ | Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide | Tool Type | Corner Radius |
| Coating | AlTiN | Style | 82-02 SEM Side and Center |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | CW|38 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Shank Type | Round |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.362
