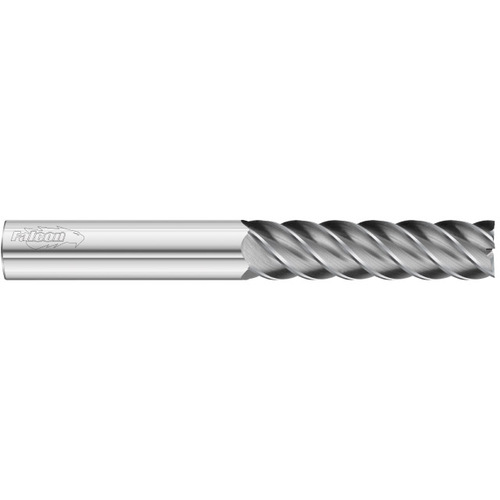

‎Square End Mill; 1″ Dia. × 2-1/2″ LOC × 1″ Shank Dia. × 5″ OAL ; 5 FL ; Carbide ; Uncoated ; Series 3845

‹ ›

‎Square End Mill; 1″ Dia. × 2-1/2″ LOC × 1″ Shank Dia. × 5″ OAL ; 5 FL ; Carbide ; Uncoated ; Series 3845

‎SQ End Mill; 1″ Dia. × 2-1/2″ LOC × 1″ Shank Dia. × 5″ OAL ; 5 FL ; Carbide ; Uncoated ; Series 3845

Item # FT8538071

Brand: Fullerton Tool

MFG #: 38071

Legacy Part #: FT8538071

TradeName: 3845 Falcon Finisher End Mill

Quantity Available

Cutting Diameter (DC)

1″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

1″

End Shape

Square

Depth of Cut Maximum (APMX)

‎2-1/2″

Tool Type

Center Cut|Single-End

Overall Length (OAL)

5″

Length Group

Extra Long

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

Uncoated

Decimal Equivalent

1″

Flute Count (NOF)

Series/List #

3845

Flute Helix Angle (FHA)

45 Degrees

Product Features

Remarks

‎

Square End

5 Flutes

45° Helix

Eccentric Relief

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard Uncoated and TiAlN Coating

Center Cutting

Metric and Inch Based Tools

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

1.675
