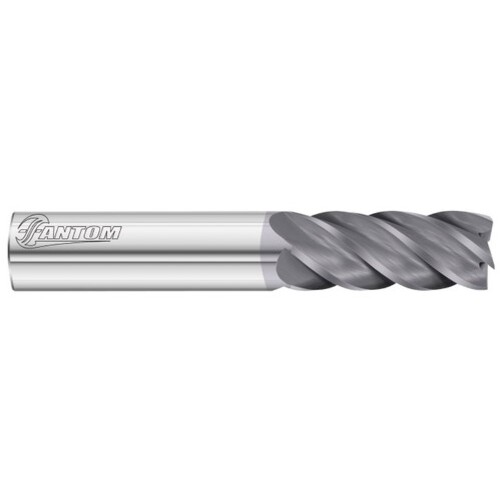

Square End Mill; 16 mm Dia. × 38 mm LOC × 16 mm Shank Dia. × 100 mm OAL ; 5 FL ; Carbide ; FC18 ; Series 3410

‹ ›

Square End Mill; 16 mm Dia. × 38 mm LOC × 16 mm Shank Dia. × 100 mm OAL ; 5 FL ; Carbide ; FC18 ; Series 3410

SQ End Mill; 16 mm Dia. × 38 mm LOC × 16 mm Shank Dia. × 100 mm OAL ; 5 FL ; Carbide ; Series 3410

Item # FT8592445

Brand: Fullerton Tool

MFG #: 92445

Legacy Part #: FT8592445

TradeName: Fantom

Quantity Available

Cutting Diameter (DC)

16 mm

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

16 mm

End Shape

Square

Depth of Cut Maximum (APMX)

38 mm

Tool Type

Center Cut|Single-End

Overall Length (OAL)

100 mm

Length Group

Regular

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

FC18

Decimal Equivalent

0.6299″

Flute Count (NOF)

Series/List #

3410

Flute Helix Angle (FHA)

40 Degrees

Product Features

Remarks

‎

Square and Corner Radius End

5 Individually Designed Flutes

Eccentric Relief

Variable Index

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard FC-18 Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

.340
