12J1P015030X5R00

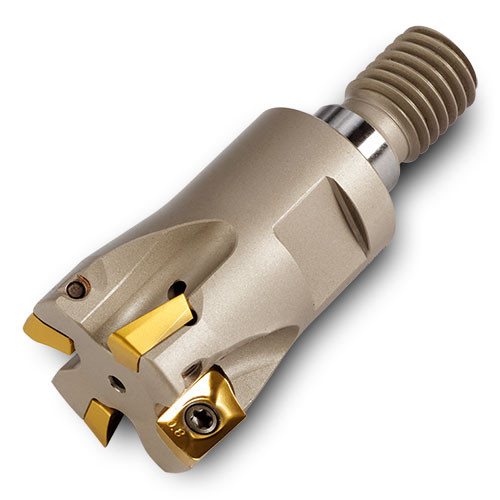

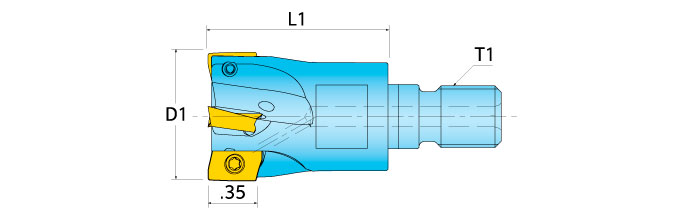

Indexable End Mill; 0.591″ Dia. × 0.354″ LOC ; 90 Degrees
| Cutting Diameter (DC/DCX) | 0.591″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 0.591″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.354″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 12 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Hub Diameter (DHUB) | 0.512″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 1.181″ |
Product Features
| Family Description | Insert Corners: 0.4, 0.8, 1.6, 2.0 & 3.1 mm R | Country of Origin | Germany |
Shipping Info
Package Weight
0.060
