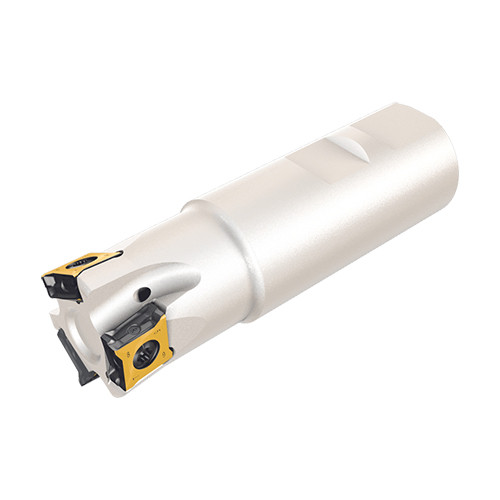

T890HT ELN D32-3-W32-13

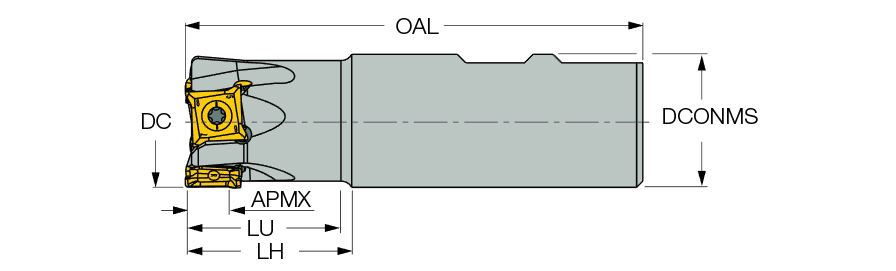

Indexable End Mill; 32 mm Dia. × 9.5 mm LOC × 32 mm Shank Dia. × 110 mm OAL × 37.4 mm LU ; Weldon Shank
| Cutting Diameter (DC/DCX) | 32 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 32 mm | Functional Length (LF) | 74 mm |
| Cutting Item Count (CICT) | 3 | Usable Length (LU) | 37.4 mm |
| Depth of Cut Maximum (APMX) | 9.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 110 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Measurement Type | Metric |
| Application | | Facing | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.56 kg |
Product Features
| Family Description | 90° endmills carrying T890 LN.T 1306... tangentially clamped inserts with 8 cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
1.479
