GP SCEM 2FL 4X6X8X57

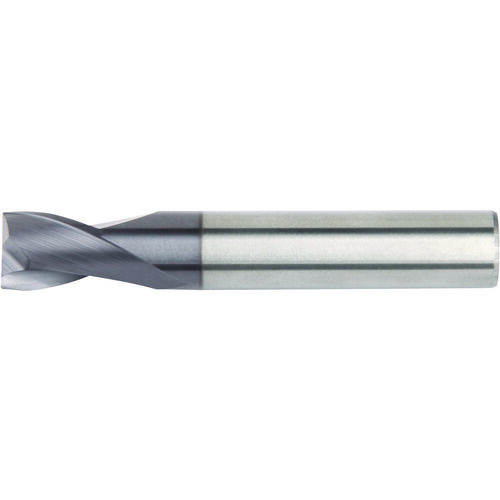

Square End Mill; 4 mm Dia. × 8 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 2 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 4 mm | Flute Helix Angle (FHA) | 30 Degrees|CW |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 8 mm | End Shape | Square |
| Overall Length (OAL) | 57 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | Carbide | Corner Chamfer Width (CHW) | 0.4 mm |
| Coating | AlTiN | Decimal Equivalent | 0.1575″ |
| Flute Count (NOF) | 2 | Corner Radius (RE) / Chamfer Width (CHW) | 0.1 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.0397
