MEC 25S2516017 25.00MM EM

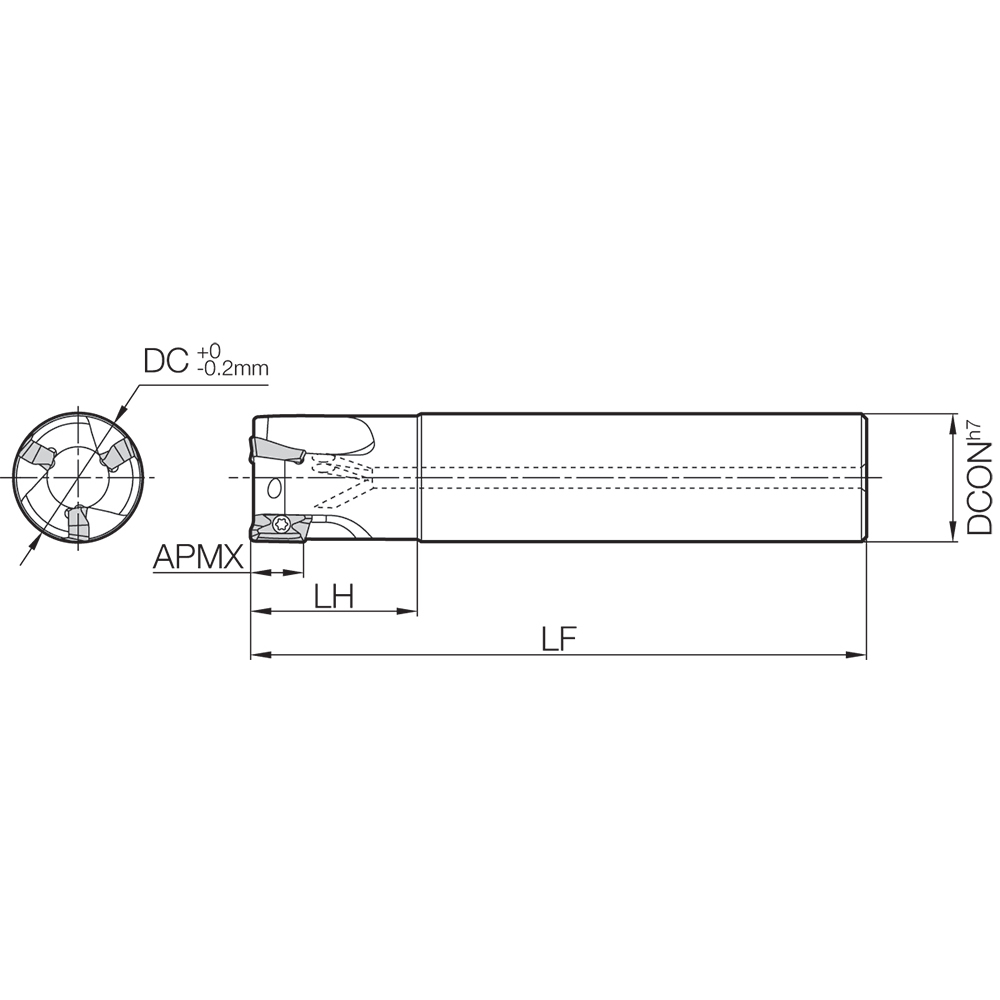

Indexable End Mill; 25 mm Dia. × 25 mm Shank Dia. × 160 mm OAL × 15.7 mm LU ; 2 FL ; Round Shank ; Series MEC
| Cutting Diameter (DC/DCX) | 25 mm | Tool Type | End Mill |
| Cutting Diameter (DC) | 25 mm | Usable Length (LU) | 15.7 mm |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 160 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Style | MEC |
| Ramping Angle Maximum (RMPX) | 8 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | Facing | Shouldering | Slotting | Ramping | Angle | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Series/List # | MEC |
| Master Insert Identification (MIID) | BDMT170404ER-JT | BDMT170408ER-JT | BDMT170412ER-JT | BDMT170416ER-JT | BDMT170420ER-JT | BDMT170424ER-JT | BDMT170431ER-JT | BDMT170440ER-JT | BDMT170404ER-JS | BDMT170408ER-JS | BDGT170404FR-JA | BDGT170408FR-JA | BDGT170420FR-JA | BDGT170431FR-JA | BDMT170402FR | BDMT170404FR | Measurement Type | Metric |
| Head Length (LH) | 60 mm |
Product Features
| Family Description | Alternate Manufacture # MEC25S2516017 | Country of Origin | Japan |
Shipping Info
Package Weight
1.4782
