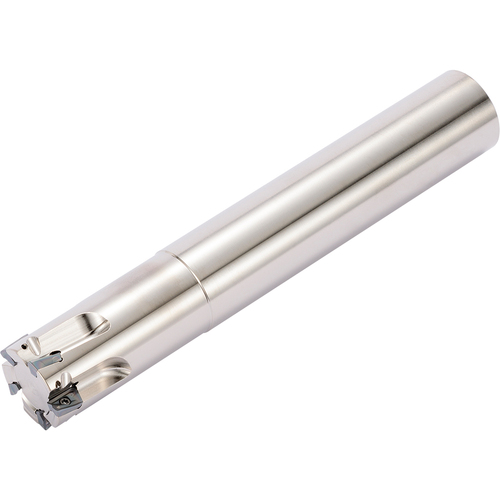

MEC 25S2011T 25.00MM EM

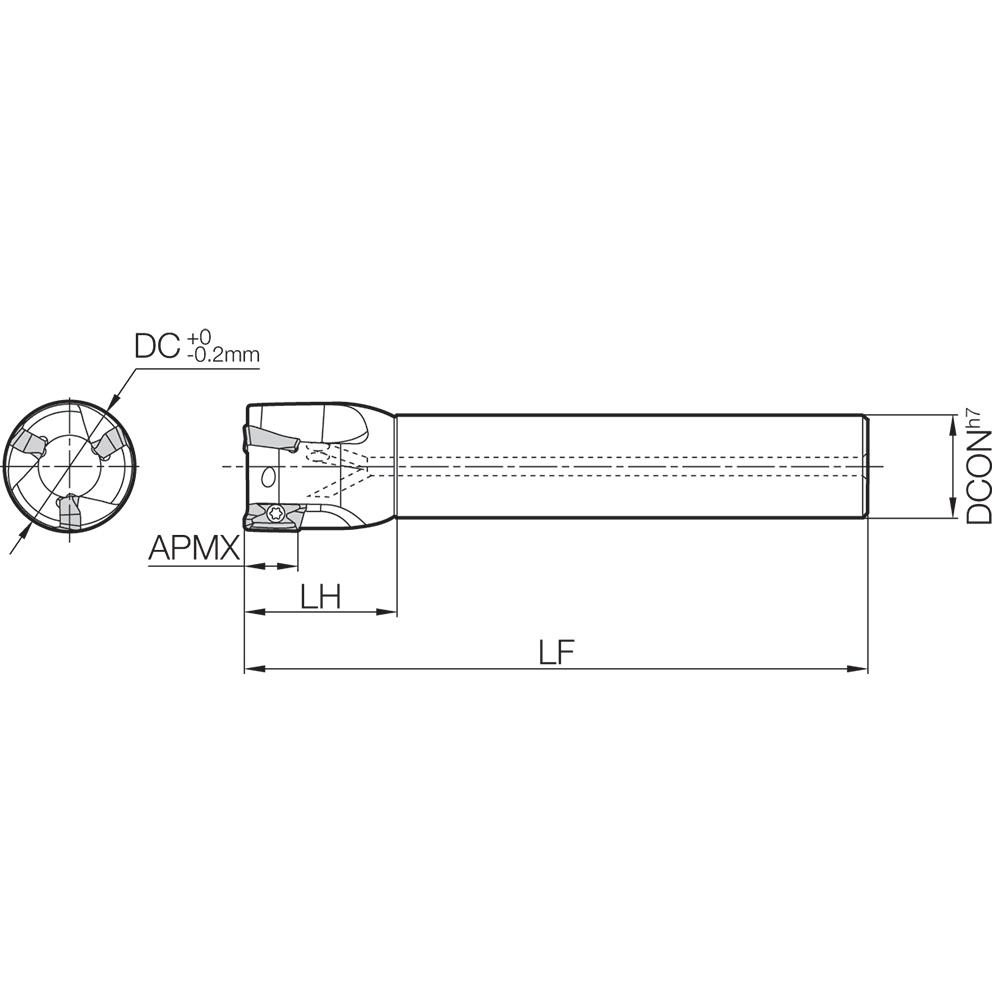

Indexable End Mill; 25 mm Dia. × 20 mm Shank Dia. × 120 mm OAL × 10 mm LU ; 3 FL ; Round Shank ; Series MEC
| Cutting Diameter (DC/DCX) | 25 mm | Tool Type | End Mill |
| Cutting Diameter (DC) | 25 mm | Usable Length (LU) | 10 mm |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 120 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Style | MEC |
| Ramping Angle Maximum (RMPX) | 2.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | Facing | Shouldering | Slotting | Ramping | Angle | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Series/List # | MEC |
| Master Insert Identification (MIID) | BDMT11T302ER-JT | BDMT11T304ER-JT | BDMT11T308ER-JT | BDMT11T312ER-JT | BDMT11T316ER-JT | BDMT11T320ER-JT | BDMT11T324ER-JT | BDMT11T331ER-JT | BDMT11T302ER-JS | BDMT11T304ER-JS | BDMT11T308ER-JS | BDGT11T302FR-JA | BDGT11T304FR-JA | BDGT11T308FR-JA | BDMT11T302FR | BDMT11T304FR | Measurement Type | Metric |
| Head Length (LH) | 29 mm |
Product Features
| Family Description | Alternate Manufacture # MEC25S2011T | Country of Origin | S.Korea |
Shipping Info
Package Weight
.8503
