MEW 40W32105T 40.00MM EM

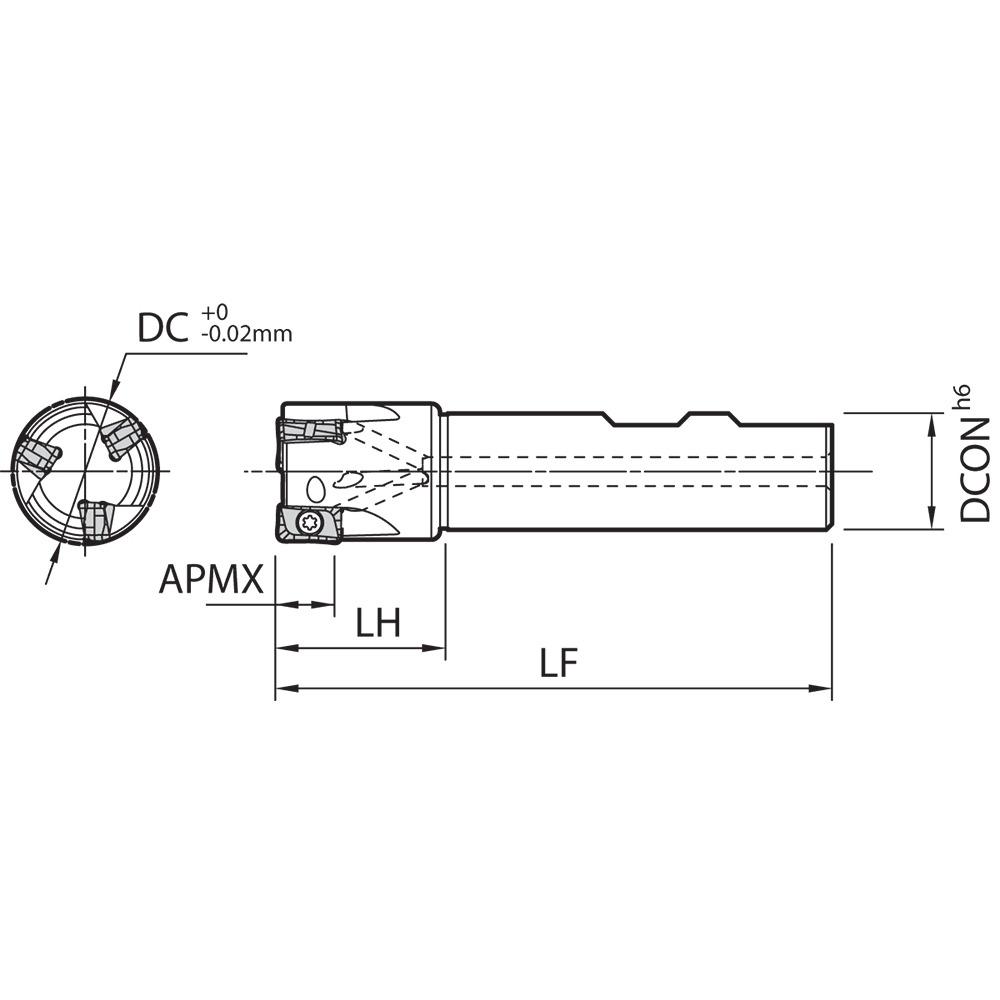

Indexable End Mill; 40 mm Dia. × 32 mm Shank Dia. × 111 mm OAL × 10 mm LU ; 5 FL ; Weldon Shank ; Series M-FOUR
| Cutting Diameter (DC/DCX) | 40 mm | Tool Type | End Mill |
| Cutting Diameter (DC) | 40 mm | Usable Length (LU) | 10 mm |
| Cutting Item Count (CICT) | 5 | Flute Count (NOF) | 5 |
| Overall Length (OAL) | 111 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Style | MEW |
| Application | Facing | Shouldering | Slotting | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Angle | 90 Degrees |
| Master Insert Identification (MIID) | LOMU100404ER-GM | LOMU100408ER-GM | LOMU100412ER-GM | LOMU100416ER-GM | LOMU100420ER-GM | Series/List # | M-FOUR |
| Head Length (LH) | 50 mm | Measurement Type | Metric |
Product Features
| Family Description | Alternate Manufacture # MEW40W32105T | Country of Origin | Japan |
Shipping Info
Package Weight
1.8894
