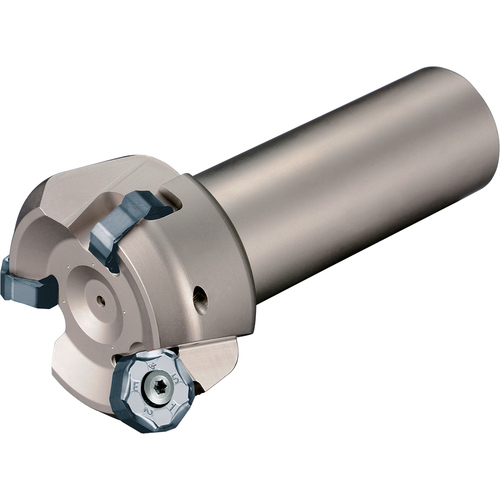

MFPN 45050RS323T 50.00MM
Indexable End Mill; 63 mm Dia. × 32 mm Shank Dia. × 110 mm OAL × 6 mm LU ; 3 FL ; Round Shank ; Series MFPN

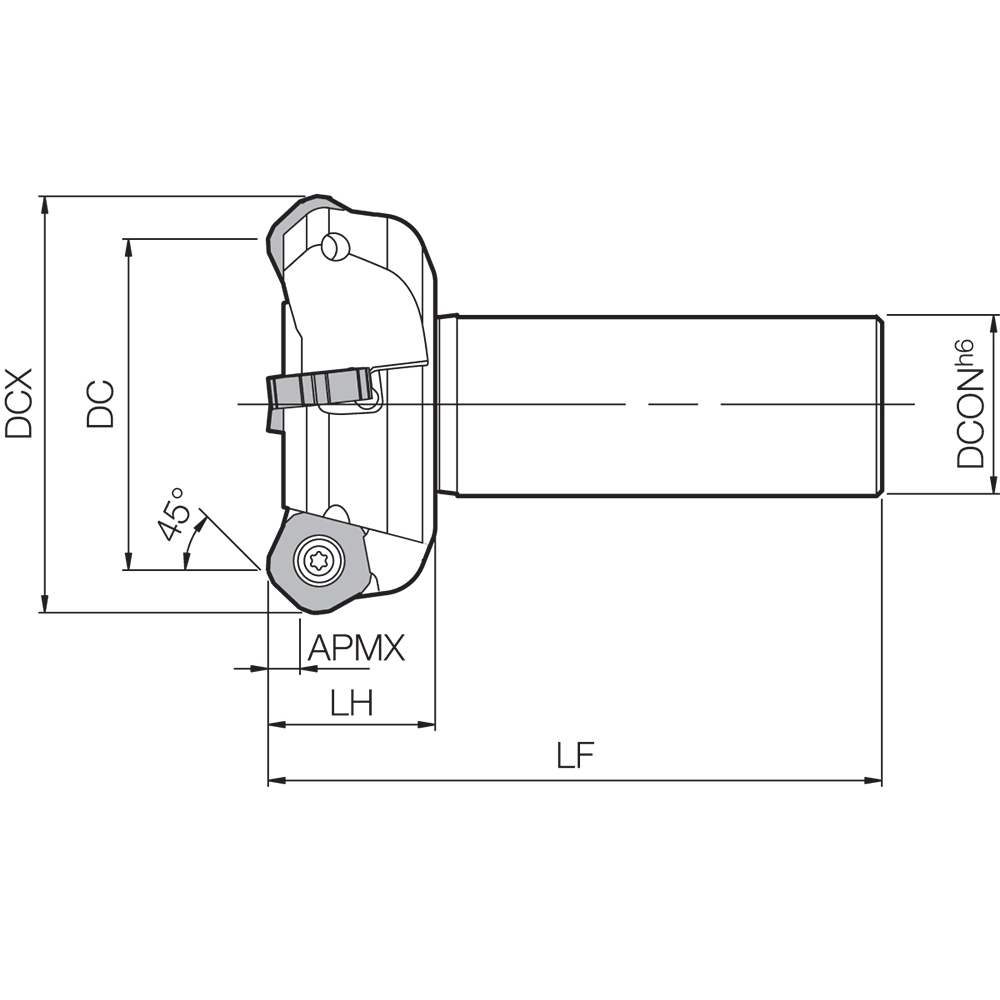

| Cutting Diameter (DC/DCX) | 63 mm | Usable Length (LU) | 6 mm |
| Cutting Diameter (DC) | 50 mm | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 110 mm | Style | MFPN |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Application | Facing | Chamfering | Angle | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Series/List # | MFPN |
| Master Insert Identification (MIID) | PNEU1205ANER-GL | PNMU1205ANER-GM | PNMU1205ANER-SM | PNMU1205ANER-GH | PNEU1205ANER-W | Measurement Type | Metric |
| Head Length (LH) | 30 mm | Cutting Diameter Maximum (DCX) | 63 mm |
| Tool Type | End Mill |
Product Features
| Family Description | Alternate Manufacture # MFPN45050RS323T | Country of Origin | Japan |
Shipping Info
Package Weight
2.3305
