MFPN 452500RW1254T 2.5000

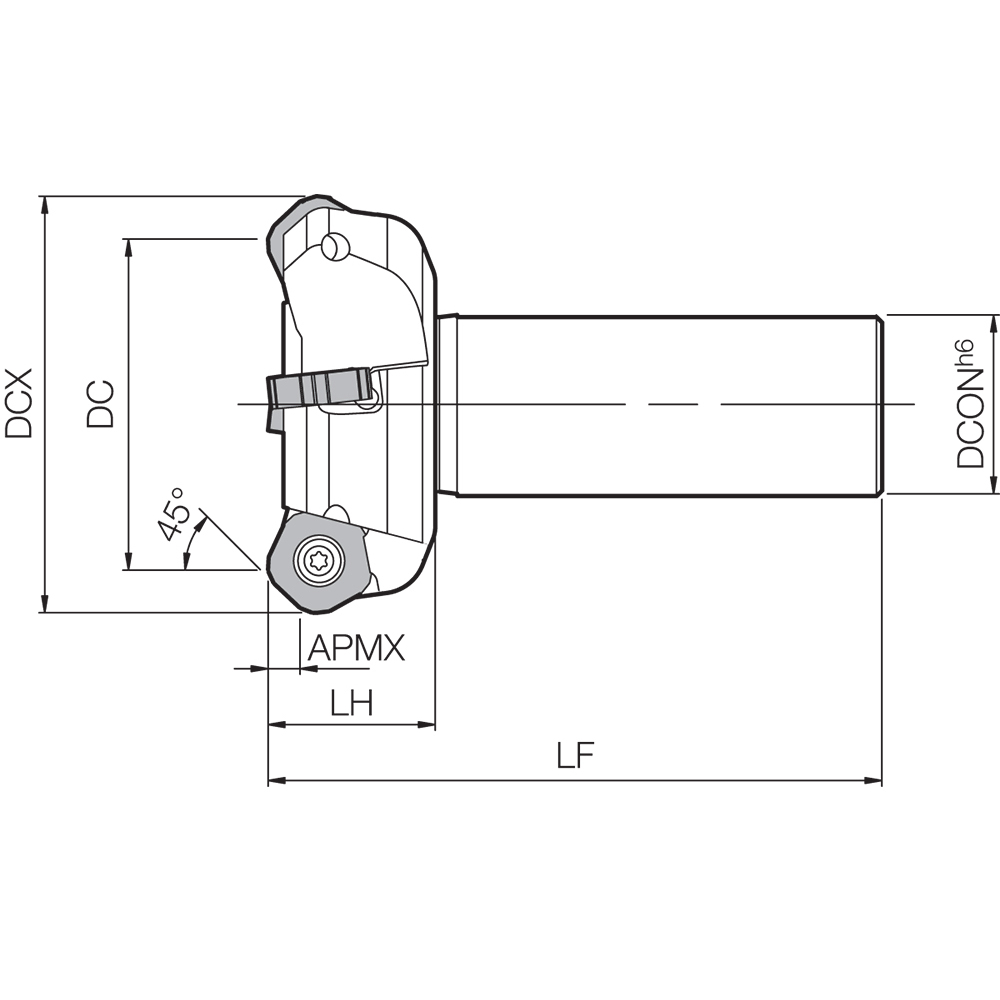

Indexable End Mill; 2.81″ Dia. × 1-1/4″ Shank Dia. × 3.6″ OAL × 0.2362″ LU ; 4 FL ; Weldon Shank ; Series MFPN
| Cutting Diameter (DC/DCX) | 2.81″ | Usable Length (LU) | 0.2362″ |
| Cutting Diameter (DC) | 2-1/2″ | Flute Count (NOF) | 4 |
| Cutting Item Count (CICT) | 4 | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3.6″ | Style | MFPN |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Application | Facing | Chamfering | Angle | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Series/List # | MFPN |
| Master Insert Identification (MIID) | PNEU1205ANER-GL | PNMU1205ANER-GM | PNMU1205ANER-SM | PNMU1205ANER-GH | PNEU1205ANER-W | Measurement Type | Inch |
| Head Length (LH) | 1.1811″ | Cutting Diameter Maximum (DCX) | 2.81″ |
| Tool Type | End Mill |
Product Features
| Family Description | Alternate Manufacture # MFPN452500RW1254T | Country of Origin | Japan |
Shipping Info
Package Weight
3.5320
