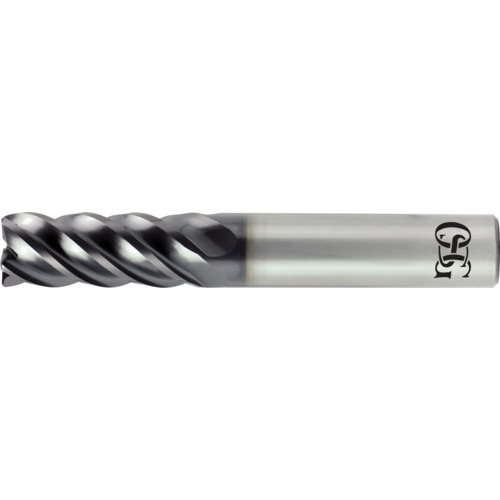

5/16″ Dia. × 5/16″ Shank × 3/4″ DOC × 2-1/2″ OAL, Carbide, TiAlN, 5 Flute, Variable Helix, Round, Corner Radius, Solid End Mill
SQ End Mill; 5/16″ Dia. × 3/4″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 0.03″ RE ; 0.03″ RE ; 5 FL ; 3/4″ LBS ; Carbide ; AlTiN ; Series 2055
| Cutting Diameter (DC) | 5/16″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Usable Length (LU) | 3/4″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Style | Corner Radius |
| Coating | AlTiN | Decimal Equivalent | 0.3125″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | Variable | Series/List # | 2055 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.10000
Package Width
.55000
Package Weight
0.1
