MECX 21S20140074T 21.00MM

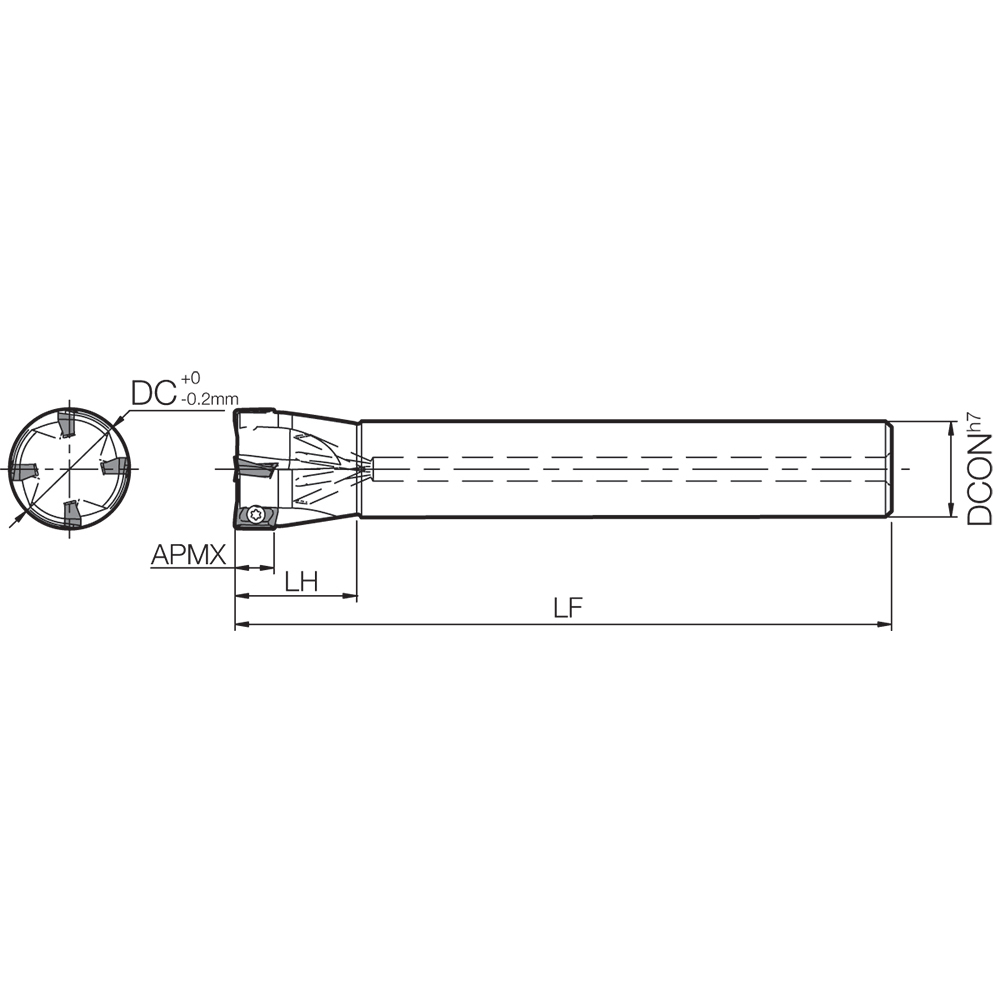

Indexable End Mill; 21 mm Dia. × 20 mm Shank Dia. × 140 mm OAL × 6 mm LU ; 4 FL ; Round Shank ; Series MECX
| Cutting Diameter (DC/DCX) | 21 mm | Tool Type | End Mill |
| Cutting Diameter (DC) | 21 mm | Usable Length (LU) | 6 mm |
| Cutting Item Count (CICT) | 4 | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 140 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Style | MECX |
| Ramping Angle Maximum (RMPX) | 1.8 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | Facing | Shouldering | Slotting | Ramping | Angle | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Series/List # | MECX |
| Master Insert Identification (MIID) | BDMT070302ER-JT | BDMT070304ER-JT | BDMT070308ER-JT | BDMT070302ER-JS | BDMT070304ER-JS | BDMT070308ER-JS | Measurement Type | Metric |
| Head Length (LH) | 20 mm |
Product Features
| Family Description | Alternate Manufacture # MECX21S20140074T | Country of Origin | Japan |
Shipping Info
Package Weight
.7793
