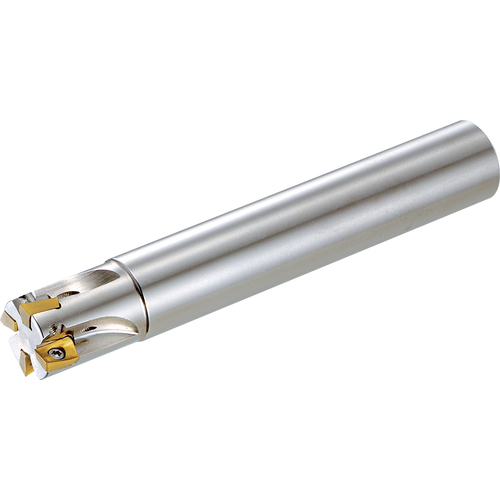

MECXL 1000S100075T 1 EM
Indexable End Mill; 1″ Dia. × 1″ Shank Dia. × 6.3″ OAL × 0.2362″ LU ; 5 FL ; Round Shank ; Series MECX

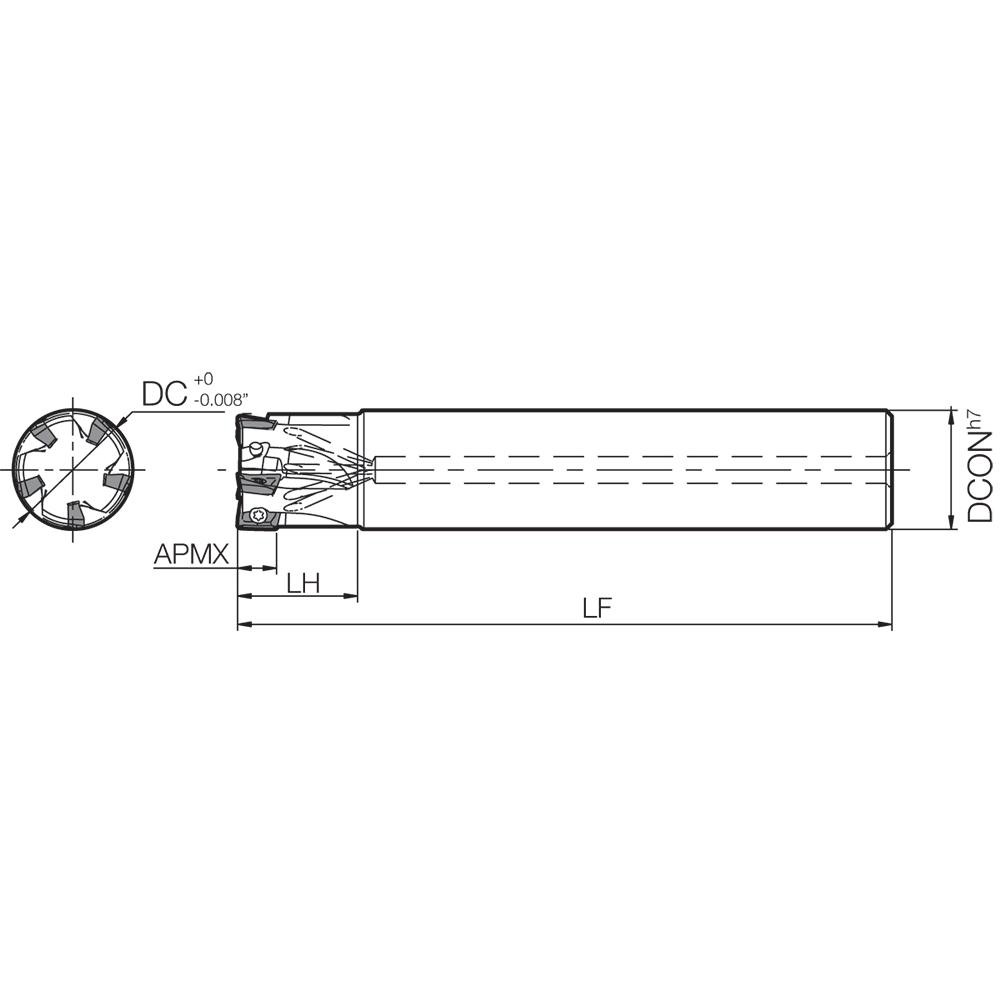

| Cutting Diameter (DC/DCX) | 1″ | Tool Type | End Mill |
| Cutting Diameter (DC) | 1″ | Usable Length (LU) | 0.2362″ |
| Cutting Item Count (CICT) | 5 | Flute Count (NOF) | 5 |
| Overall Length (OAL) | 6.3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Style | MECXL |
| Ramping Angle Maximum (RMPX) | 1.3 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | Facing | Shouldering | Slotting | Ramping | Angle | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1″ | Series/List # | MECX |
| Master Insert Identification (MIID) | BDMT070302ER-JT | BDMT070304ER-JT | BDMT070308ER-JT | BDMT070302ER-JS | BDMT070304ER-JS | BDMT070308ER-JS | Measurement Type | Inch |
| Head Length (LH) | 2.3622″ |
Product Features
| Family Description | Alternate Manufacture # MECXL1000S100075T | Country of Origin | Japan |
Shipping Info
Package Weight
.5500
