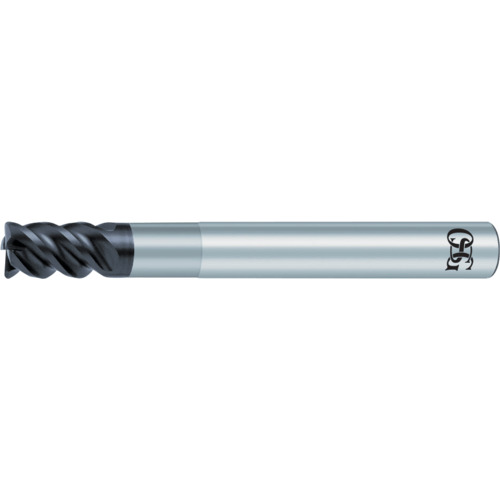

3/8XR0.060X3 4FL EXOCARB
SQ End Mill; 3/8″ Dia. × 3/8″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 0.06″ RE ; 0.06″ RE ; 4 FL ; 3/8″ LBS ; Carbide ; AlTiCrSiN ; Series 4471
| Cutting Diameter (DC) | 3/8″ | Usable Length (LU) | 3/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 0.06″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Neck Diameter (DN) | 0.367″ |
| Overall Length (OAL) | 3″ | Neck Length (LN) | 1″ |
| Cutting Edge Material | Carbide | Tool Type | High Performance |
| Coating | AlTiCrSiN | Style | Corner Radius |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 4471 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
Product Features
| Remarks | •High performance micrograin carbide •WXS coating •Corner radius •For high feed milling •Recommended for carbon steels, alloy steels, tool steels, hardened steels up to 65 HrC and cast iron. | Country of Origin | Japan |
Shipping Info
Package Length
3.15000
Package Width
.65000
Package Weight
0.175
