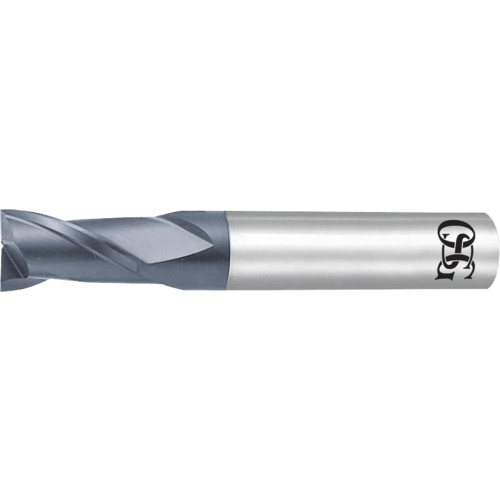

1.1 mm Dia. × 4 mm Shank × 1.7 mm DOC × 84 mm OAL, Carbide, Cr, 2 Flute, Square, Solid End Mill
SQ End Mill; 1.1 mm Dia. × 1.7 mm LOC × 4 mm Shank Dia. × 84 mm OAL ; 3 mm RE ; 2 FL ; Carbide ; CrN ; Series 3720
| Cutting Diameter (DC) | 1.1 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 4 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1.7 mm | Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 84 mm | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Style | Square |
| Coating | CrN | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | 3720 |
Product Features
| Remarks | •Solid Carbide 2-Flute Square End Single End Mills •Used for general purpose milling in most materials of medium hardness such as steel, brass, iron and non-ferrous materials •Made from premium submicron grain carbide | Country of Origin | Japan |
Shipping Info
Package Length
2.45000
Package Width
.55000
Package Weight
0.03
