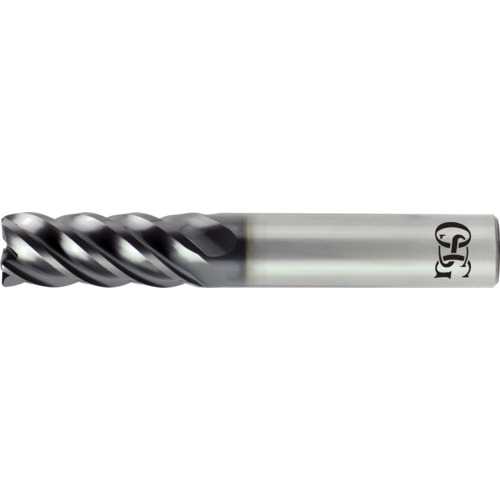

1″ Dia. × 1″ Shank × 1-1/2″ DOC × 4″ OAL, Carbide, TiAlN, 5 Flute, Variable Helix, Round, Corner Radius, Solid End Mill
Corner Radius End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 4″ OAL ; 5 FL ; Carbide ; AlTiN ; Series 2055
| Cutting Diameter (DC) | 1″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1″ | Usable Length (LU) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Corner Radius (RE) | 0.06″ |
| Overall Length (OAL) | 4″ | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Style | Corner Radius |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | 2055 |
| Flute Helix Angle (FHA) | Variable | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
5.90000
Package Width
1.45000
Package Height
1.35000
Package Weight
1.505
