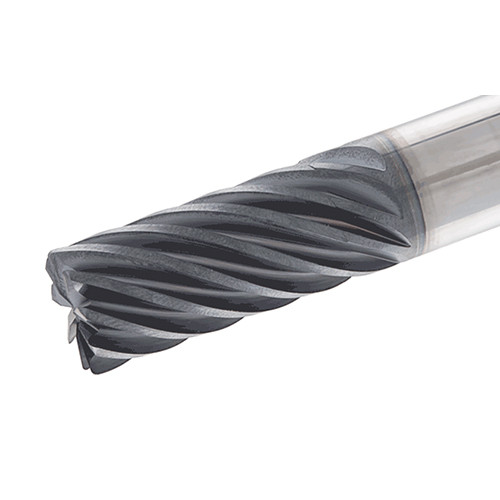

ECK-H9 16-32W16CFR0.8T92 IC900

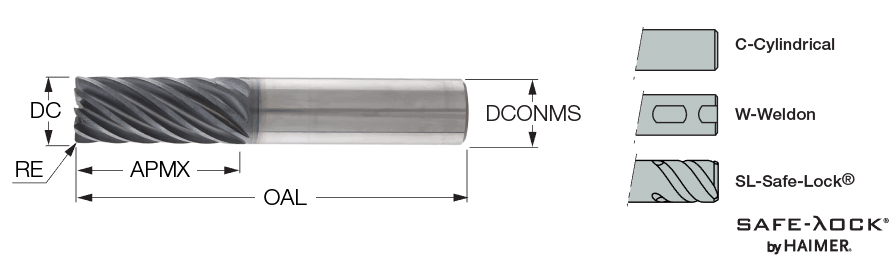

SQ End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 0.8 mm RE ; 9 FL ; 32 mm LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 16 mm | Corner Radius (RE) | 0.8 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 32 mm | Grade | IC900 |
| Overall Length (OAL) | 92 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Count (NOF) | 9 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 37 Degrees | Body Material | Carbide |
| Shank Type | Weldon | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 32 mm | Cutting Diameter Tolerance | e8 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Shouldering | |
Product Features
| Family Description | 7 and 9 flute endmills with different helix and variable pitch for chatter damping with assorted radii. Used for high titanium removal rates. | Country of Origin | Israel |

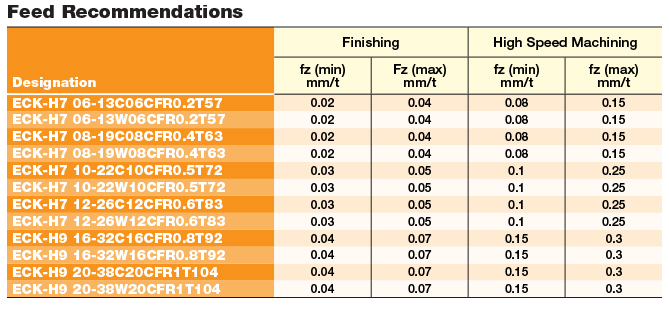

| Remarks | Enables processing at a radial width of cut (AE) of up to 0.10xD For feedrecommendations click on More Info |
