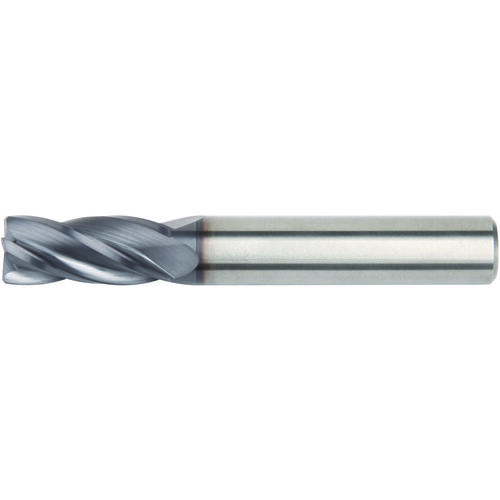

GP SC END MILL 4FL 12X12X26X83
| Cutting Diameter (DC) | 12 mm | Flute Helix Angle (FHA) | 30 Degrees|CW |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 26 mm | End Shape | Square |
| Overall Length (OAL) | 83 mm | Usable Length (LU) | 26 mm |
| Cutting Edge Material | Carbide | Corner Chamfer Width (CHW) | 0.5 mm |
| Coating | Uncoated | Decimal Equivalent | 0.4724″ |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
.2601
