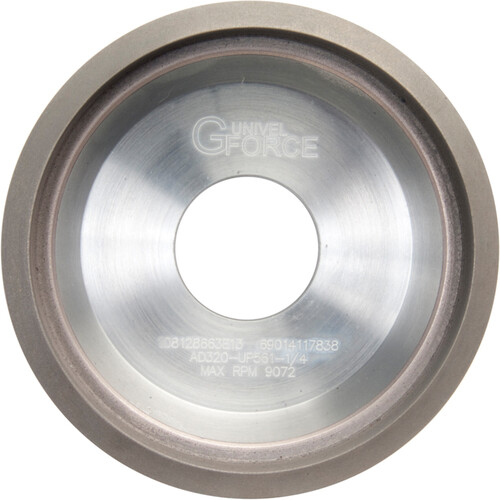

4″ × 1-1/4″ × 1-1/4″ Diamond Wheel Type 11V5 Cup 320 Grit
| Abrasive Material | Diamond | Wheel Type | Type 11B5A |
| Diameter | 4″ | Concentration | 100 |
| Width | 1/4″ | Maximum RPM | 9,072 |
| Arbor Hole | 1 1/4″ | Specification | AD320-UP561-1/4 |
| Grit | 320 |
Product Features
| Remarks | •Premium synthetic diamond specifically engineered for use in CNC manufacturing of WC cutting tools •High performance polyimide and hybrid bond systems designed for high material removal rates as well as superior form holding •Designed to grind with low power providing excellent edge quality and fine finish for relief applications •Provides improved surface finish and form holding because the free cutting feature enables use of finer grit size compared to standard product •Can be profiled with a rotary diamond profile dresserNorton G-Force have been specificly developed to meet the demanding needs of cutting tool manufacturing as well as reshapening. G-Force bonds use a unique technology specificly designed to provide hign marteial removal rates, superior form holding that allow for lights out operation. These diamond wheels are rotary dressable. | Country of Origin | USA |
Shipping Info
Package Weight
1
