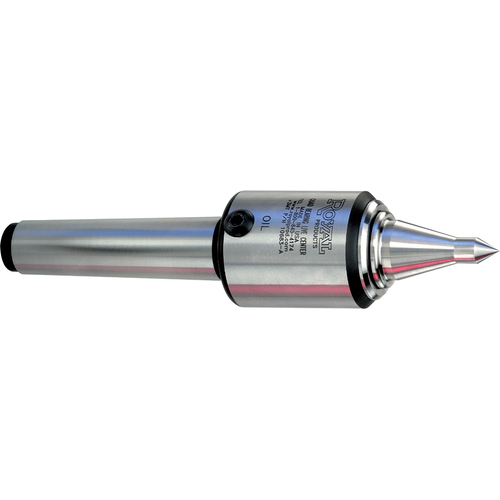

Live Centers - #5 MT High Speed Precision Standard
| Type | Live Center | Accuracy | 0.0001″ |
| Taper Type | Morse Taper | Model No | 10685 |
| Point Style | Steel Tipped | Head Length | 2 11/16″ |
| Maximum RPM | 12,000 | Point Length | 2 1/2″ |
| Mount | 5 MT | Tip Diameter | 1/2″ |
| Overall Length | 2 1/2″ | Style | Steel Tipped |
| Point Diameter | 1 1/4″ | Radial Load | 525 lbs |
| Thrust Load | 1,380 lbs |
Product Features
| Remarks | •A true high-speed live center - up to 12,000 rpm. •Lubricated with lightweight spindle oil instead of grease for reduced turning resistance and lower operating temperatures. •0.00005″ TIR guaranteed. •Bearing life is significantly extended with the exclusive Royal Roto-Shield coolant slinger and upgraded, long-life, spring-loaded seal that is resistant to abrasion, high temperatures and virtually all metalworking fluids. •Three precision angular contact bearings are secured to the point with a locknut to form a rigid, preloaded assembly. •The point extends into the body where it is supported by a needle roller bearing, which further increases rigidity, reduces point deflection, and dampens vibration •Low profile head provides excellent tool clearance. •Body and point are hardened for strength and durability. | Country of Origin | UNITED STATES |
Shipping Info
Package Weight
6.8
