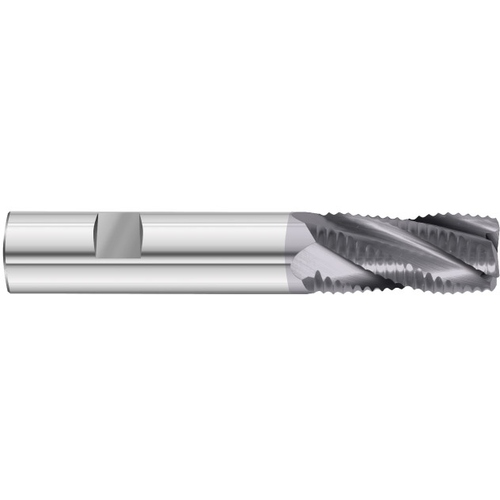

Corner Radius End Mill; 6 mm Dia. × 20 mm LOC × 6 mm Shank Dia. × 20 mm OAL ; 3 FL ; Carbide ; AlTiN
SQ End Mill; 6 mm Dia. × 20 mm LOC × 6 mm Shank Dia. × 20 mm OAL ; 3 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 6 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 20 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 20 mm | Corner Radius (RE) | 0.75 mm |
| Cutting Edge Material | Carbide | Tool Type | Single-End |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.2362″ |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
0.065
