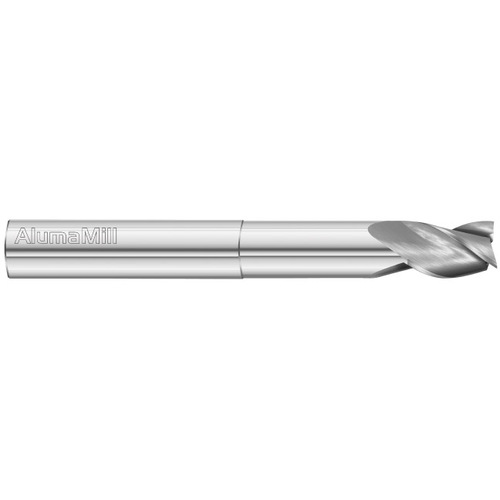

Square End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 150 mm OAL ; 3 FL ; Carbide ; Uncoated ; Series 3835
SQ End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 150 mm OAL ; 3 FL ; Carbide ; Uncoated ; Series 3835
| Cutting Diameter (DC) | 20 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 20 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 38 mm | Usable Length (LU) | 89 mm |
| Overall Length (OAL) | 150 mm | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Decimal Equivalent | 0.7874″ |
| Flute Count (NOF) | 3 | Series/List # | 3835 |
| Flute Helix Angle (FHA) | 36 Degrees |
Product Features
| Remarks | ‎ |
Country of Origin | USA |
Shipping Info
Package Weight
1.33
