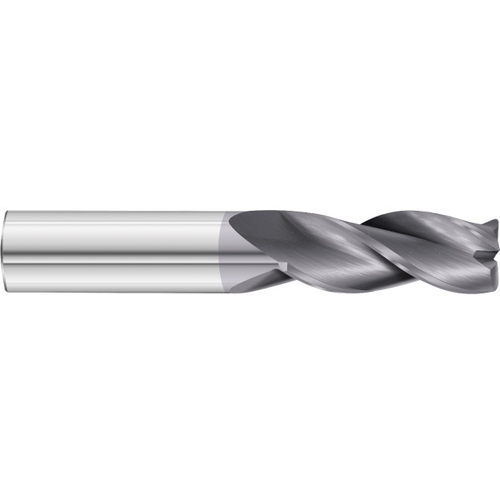

Corner Radius End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 3/4″ OAL ; 3 FL ; Carbide ; AlTiN

‹ ›

Corner Radius End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 3/4″ OAL ; 3 FL ; Carbide ; AlTiN

Item # FT8533458

Brand: Fullerton Tool

MFG #: 33458

Legacy Part #: FT8533458

TradeName: 3335 Alloy Steel Rougher End Mill

Quantity Available

Cutting Diameter (DC)

1/4″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

1/4″

End Shape

Corner Radius

Depth of Cut Maximum (APMX)

3/4″

Application

Roughing

Overall Length (OAL)

3/4″

Corner Radius (RE)

0.015″

Cutting Edge Material

Carbide

Tool Type

Single-End

Coating

AlTiN

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.25″

Flute Helix Angle (FHA)

35 Degrees

Product Features

Remarks

‎

Corner Radius End

3 Flutes

35° Helix

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard TiAlN Coating

Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Country of Origin

USA

Shipping Info

Package Length

1.00000

Package Width

1.00000

Package Height

1.00000

Package Weight

.007
