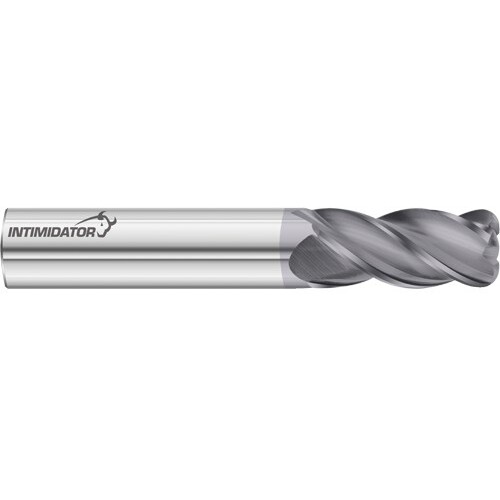

Corner Radius End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; FC18 ; Series 3000
SQ End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; Series 3000
| Cutting Diameter (DC) | 1″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1″ | Usable Length (LU) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Corner Radius (RE) | 0.045″ |
| Overall Length (OAL) | 4″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Regular |
| Coating | FC18 | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | 3000 |
| Shank Type | Weldon |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
1.320
