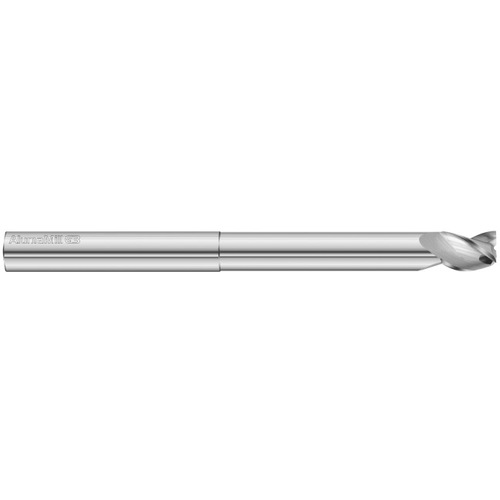

Square End Mill; 16 mm Dia. × 30 mm LOC × 16 mm Shank Dia. × 150 mm OAL ; 3 FL ; Carbide ; Uncoated ; Series 3833
Square End Mill; 16 mm Dia. × 30 mm LOC × 16 mm Shank Dia. × 150 mm OAL ; 3 FL ; Carbide ; Uncoated ; Series 3833
| Cutting Diameter (DC) | 16 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 16 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 30 mm | Usable Length (LU) | 89 mm |
| Overall Length (OAL) | 150 mm | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Long Reach |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.6299″ |
| Flute Helix Angle (FHA) | 37.5 Degrees | Series/List # | 3833 |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
.765
