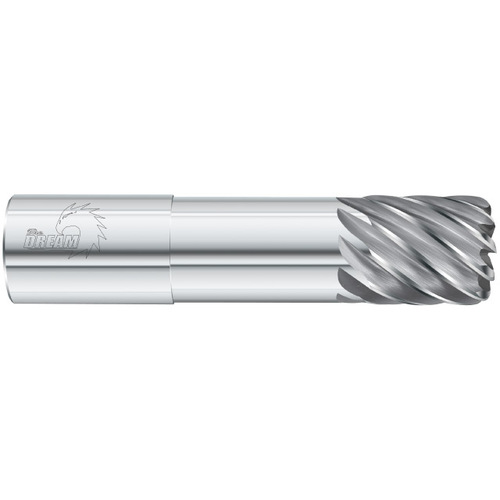

Corner Radius End Mill; 5/8″ Dia. × 3/4″ LOC × 5/8″ Shank Dia. × 4″ OAL ; 6 FL ; Carbide ; Uncoated ; Series 3810
SQ End Mill; 5/8″ Dia. × 3/4″ LOC × 5/8″ Shank Dia. × 4″ OAL ; 0.09″ RE ; 6 FL ; 3/4″ LBS ; Carbide ; Uncoated ; Series 3810
| Cutting Diameter (DC) | 5/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 3/4″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Corner Radius (RE) | 0.09″ |
| Overall Length (OAL) | 4″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Long Reach |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Decimal Equivalent | 0.625″ |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | 3810 |
| Shank Type | Round |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
0.57
