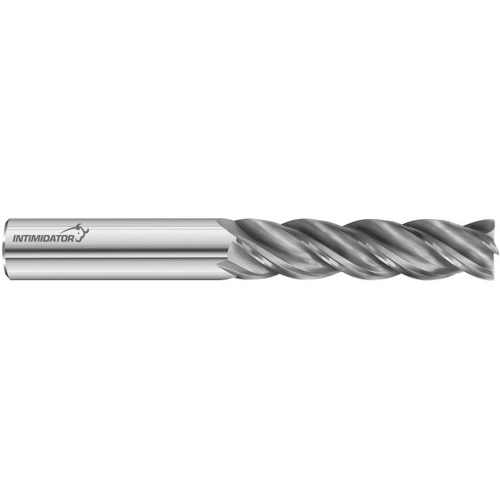

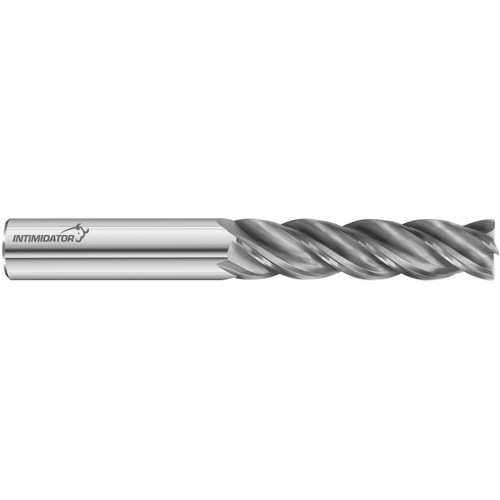

Corner Radius End Mill; 3/4″ Dia. × 3″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 4 FL ; Carbide ; FC18 ; Series 3000
SQ End Mill; 3/4″ Dia. × 3″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 0.06″ RE ; 4 FL ; 3″ LBS ; Carbide ; FC18 ; Series 3000
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Usable Length (LU) | 3″ |
| Depth of Cut Maximum (APMX) | 3″ | Corner Radius (RE) | 0.06″ |
| Overall Length (OAL) | 6″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Extra Long |
| Coating | FC18 | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | 3000 |
| Shank Type | Weldon |
Product Features
| Remarks | |
Country of Origin | USA |
