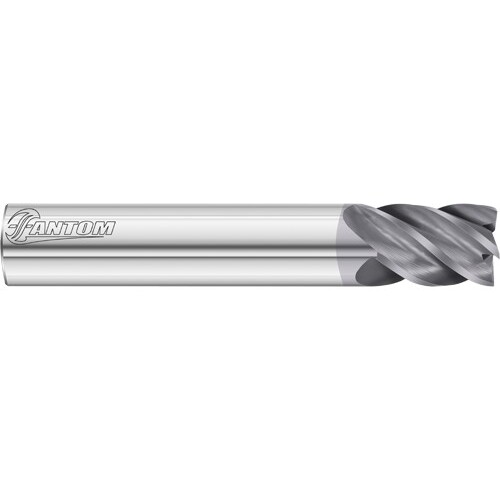

Corner Radius End Mill; 3/4″ Dia. × 7/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide

‹ ›

Corner Radius End Mill; 3/4″ Dia. × 7/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide

SQ End Mill; 3/4″ Dia. × 7/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide

Item # FT8534922W

Brand: Fullerton Tool

MFG #: 34922W

Legacy Part #: FT8534922W

Quantity Available

Cutting Diameter (DC)

3/4″

Shank Type

Weldon

Connection Diameter Machine Side (DCONMS)

3/4″

End Shape

Corner Radius

Depth of Cut Maximum (APMX)

7/8″

Corner Radius (RE)

0.035″

Overall Length (OAL)

4″

Tool Type

Center Cut|Single-End

Cutting Edge Material

Carbide

Length Group

Short|Stub

Flute Count (NOF)

Decimal Equivalent

0.75″

Flute Helix Angle (FHA)

Variable

Product Features

Remarks

‎

Square, Ball and Corner Radius End

4 Flutes

Variable Helix

Variable Index

Variable Rake

Superior Core Strength

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard FC-18 Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

UNITED STATES

Shipping Info

Package Weight

.740
