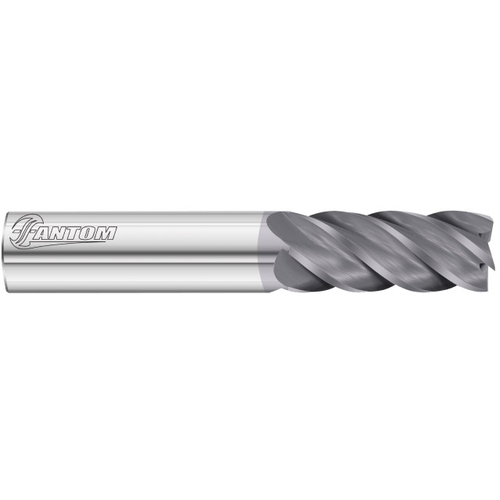

3410SD FC18 7/16X1 5F
SQ End Mill; 7/16″ Dia. × 1″ LOC × 7/16″ Shank Dia. × 2-3/4″ OAL ; 5 FL ; Carbide ; FC18 ; Series 3410
| Cutting Diameter (DC) | 7/16″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 2-3/4″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | FC18 | Decimal Equivalent | 0.4375″ |
| Flute Count (NOF) | 5 | Series/List # | 3410 |
| Flute Helix Angle (FHA) | 40 Degrees |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
0.2
