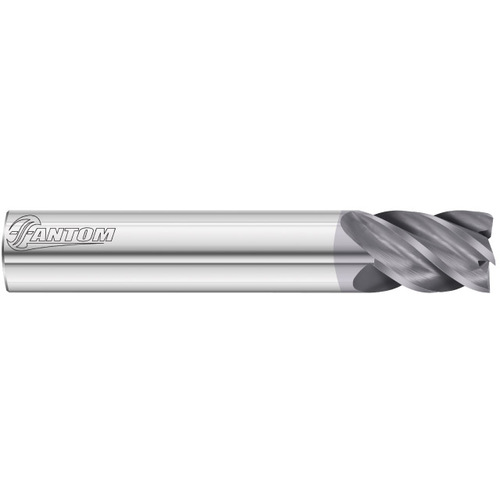

‎Square End Mill; 3/8″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 5 FL ; Carbide ; FC18 ; Series 3410

‹ ›

‎Square End Mill; 3/8″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 5 FL ; Carbide ; FC18 ; Series 3410

‎SQ End Mill; 3/8″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 5 FL ; Carbide ; FC18 ; Series 3410

Item # FT8534152

Brand: Fullerton Tool

MFG #: 34152

Legacy Part #: FT8534152

TradeName: 3410 Fantom End Mill

Quantity Available

Cutting Diameter (DC)

3/8″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

3/8″

End Shape

Square

Depth of Cut Maximum (APMX)

1/2″

Tool Type

Center Cut|Single-End

Overall Length (OAL)

‎2-1/2″

Length Group

Short|Stub

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

FC18

Decimal Equivalent

0.375″

Flute Count (NOF)

Series/List #

3410

Flute Helix Angle (FHA)

40 Degrees

Product Features

Remarks

‎

Square and Corner Radius End

5 Individually Designed Flutes

Eccentric Relief

Variable Index

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard FC-18 Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

0.34
