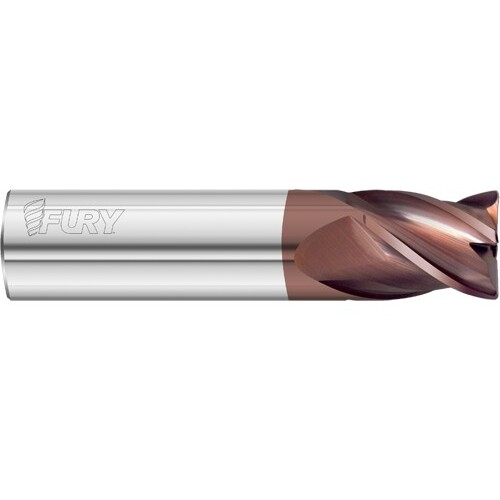

Corner Radius End Mill; 20 mm Dia. × 25 mm LOC × 20 mm Shank Dia. × 100 mm OAL ; 4 FL ; Carbide ; FC20 ; Series 3500
SQ End Mill; 20 mm Dia. × 25 mm LOC × 20 mm Shank Dia. × 100 mm OAL ; 4 FL ; Carbide ; Series 3500
| Cutting Diameter (DC) | 20 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Usable Length (LU) | 25 mm |
| Depth of Cut Maximum (APMX) | 25 mm | Corner Radius (RE) | 6 mm |
| Overall Length (OAL) | 100 mm | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | FC20 | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.7874″ |
| Flute Helix Angle (FHA) | Variable | Series/List # | 3500 |
| Shank Type | Round |
Product Features
| Remarks |
|
Country of Origin | USA |
