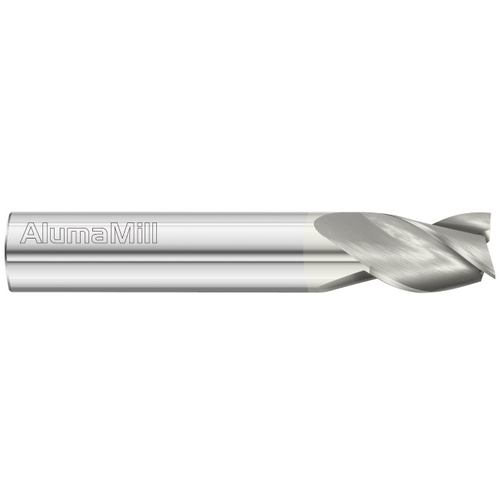

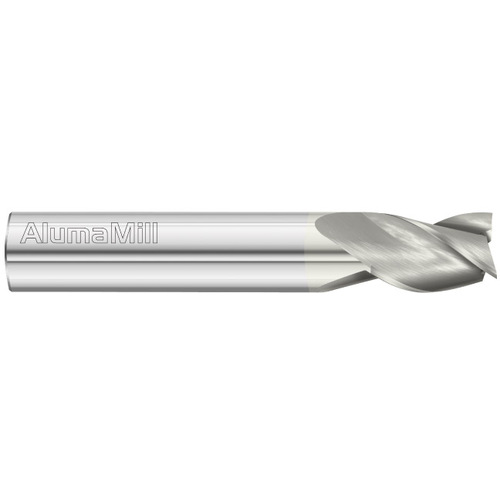

‎Square End Mill; 3/8″ Dia. × 5/8″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; FC19 ; Series 3835

‹ ›

‎Square End Mill; 3/8″ Dia. × 5/8″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; FC19 ; Series 3835

‎Square End Mill; 3/8″ Dia. × 5/8″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; Series 3835

Item # FT8538145

Brand: Fullerton Tool

MFG #: 38145

Legacy Part #: FT8538145

TradeName: 3835 AlumaMill End Mill

Quantity Available

Cutting Diameter (DC)

3/8″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

3/8″

End Shape

Square

Depth of Cut Maximum (APMX)

5/8″

Usable Length (LU)

5/8″

Overall Length (OAL)

‎2-1/2″

Tool Type

Center Cut|Single-End

Cutting Edge Material

Carbide

Length Group

Short|Stub

Coating

FC19

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.375″

Flute Helix Angle (FHA)

36 Degrees

Series/List #

3835

Product Features

Remarks

‎

Square End

3 Flutes

36° High Helix Spiral

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard Uncoated and FC-19 Coating

Center Cutting

Inch Based Tools

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.0000″ -. 0005″ / +0.000–0.013mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

.145
