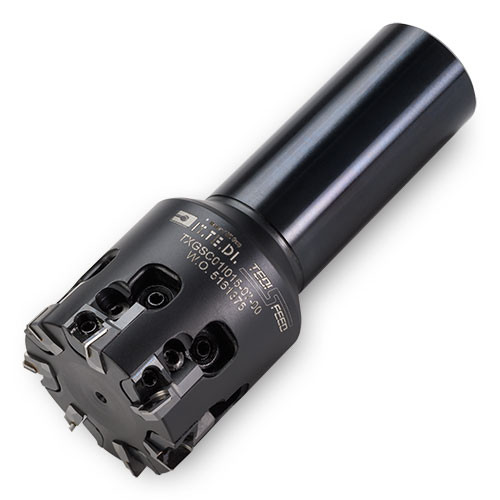

TXGSC25D040U07-00
Indexable End Mill; 38.6 mm Dia. × 11 mm LOC × 25.4 mm Shank Dia. × 100 mm OAL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 38.6 mm | Weight of Item (WT) | 0.73 Kg |
| Cutting Diameter (DC) | 38.6 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 11 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Country of Origin | Italy |
