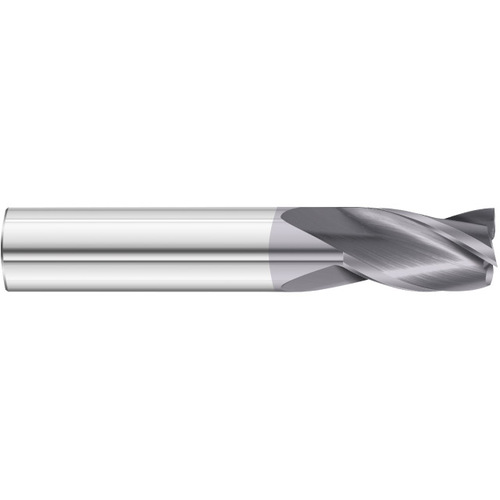

Square End Mill; 5/32″ Dia. × 9/16″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 3 FL ; Carbide ; AlTiN ; Series 3300

‹ ›

Square End Mill; 5/32″ Dia. × 9/16″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 3 FL ; Carbide ; AlTiN ; Series 3300

Item # FT8530688

Brand: Fullerton Tool

MFG #: 30688

Legacy Part #: FT8530688

TradeName: 3300 3-Flute General Purpose End Mill

Quantity Available

Cutting Diameter (DC)

5/32″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

3/16″

End Shape

Square

Depth of Cut Maximum (APMX)

9/16″

Tool Type

Center Cut|Single-End

Overall Length (OAL)

2″

Length Group

Regular

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

AlTiN

Decimal Equivalent

0.15625″

Flute Count (NOF)

Series/List #

3300

Flute Helix Angle (FHA)

30 Degrees

Product Features

Remarks

‎

Square and Ball End

3 Flutes

30° Helix

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard Uncoated and TiN, TiCN and TiAlN Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Country of Origin

USA

Shipping Info

Package Weight

.028
