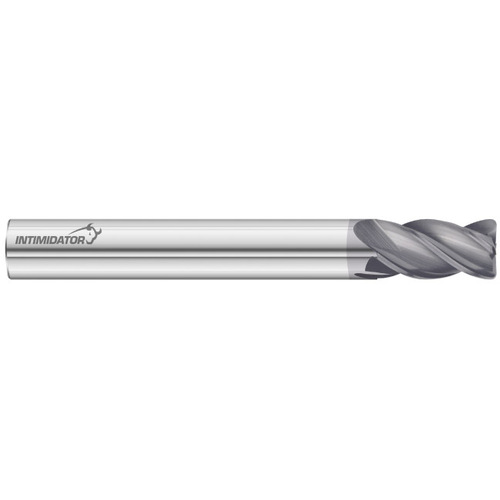

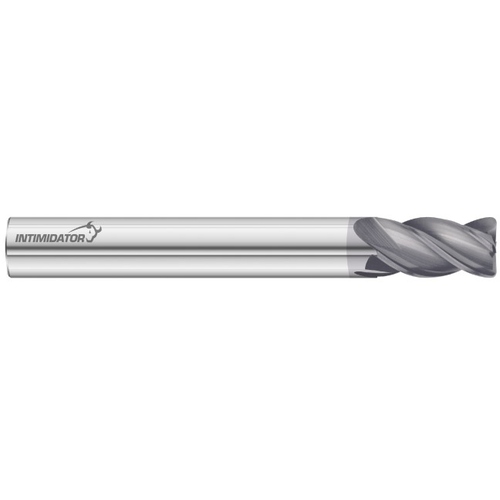

Corner Radius End Mill; 3 mm Dia. × 6 mm LOC × 3 mm Shank Dia. × 38 mm OAL ; 4 FL ; Carbide ; FC18 ; Series 3000
Corner Radius End Mill; 3 mm Dia. × 6 mm LOC × 3 mm Shank Dia. × 38 mm OAL ; 4 FL ; Carbide ; Series 3000
| Cutting Diameter (DC) | 3 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 6 mm |
| Depth of Cut Maximum (APMX) | 6 mm | Corner Radius (RE) | 0.3 mm |
| Overall Length (OAL) | 38 mm | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | FC18 | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.1181″ |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | 3000 |
| Shank Type | Round |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
.013
